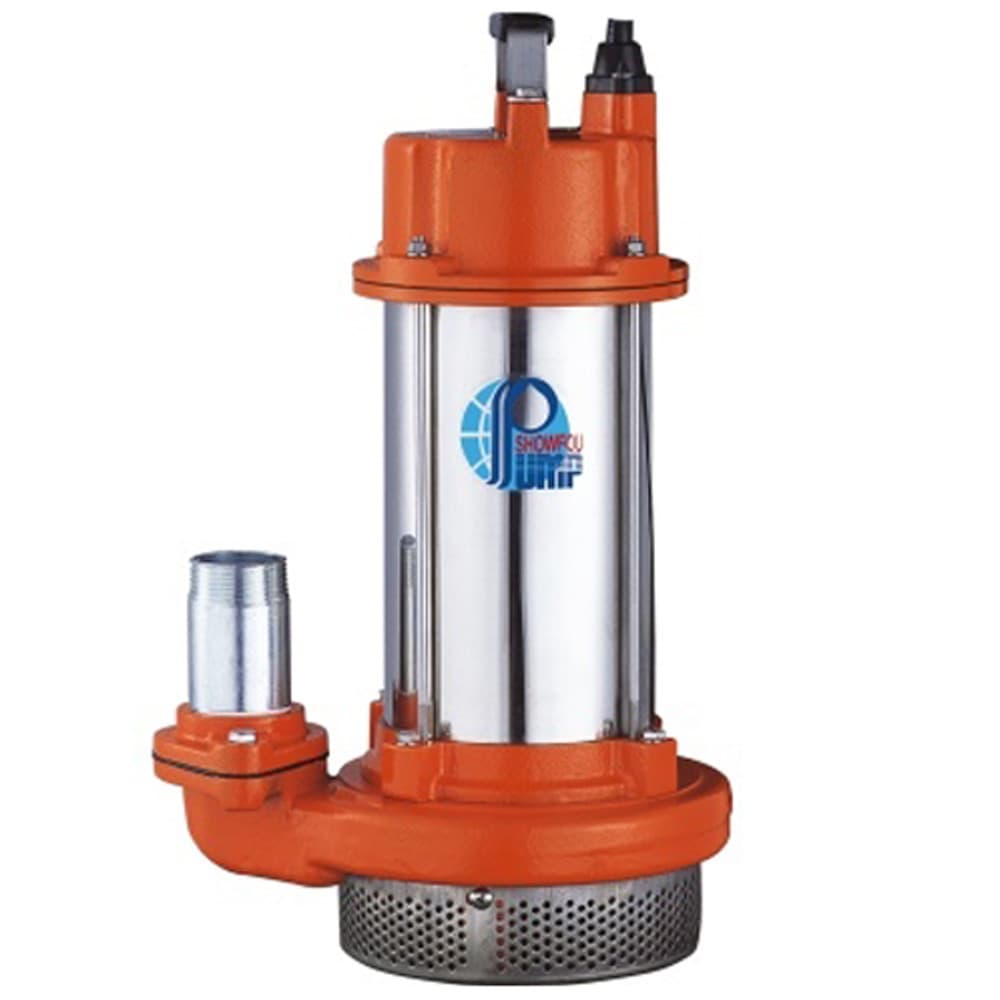

Showfu SH Type Highhead Pump 1HP

Product Specification

• Frequency: 50Hz(60Hz)
• Power: 1HP
• Power: 0.75kW
• Phase: 1
• Voltage: 200-240V
• Poles: 2
• Discharge Diameter: 1.5inch
• Discharge Diameter: 40mm
• Max Flow: 0.24m3/min
• Solid Passage: Ф3.5mm
• Weight: 23 kg
• Height: 437mm
• Pump Dia.: 265mm
• Equipped with Highhead design Closed Type Bronze Impeller
• Power: 1HP
• Motor: 2 Poles

Additional Features:

1. Epoxy Cable Sealing Base
2. Unique “Epoxy Cable Sealing Base” to ensure 100% capability to block the water vapor into the motor from outside.
3. Impeller: The impeller is hydro-dynamically well-balanced, bronze-made, and closed type to assure maximum performance and smooth, vibrationless, and durable operation.
4. Triplex Seal System: Oil-bathed Double mechanical seals(Ceramic/Carbon) plus separate oil seal to ensures a longer pump life.
5. Compact and Light-Weight: Designed to be light, so easy to carry and handle.
6. Quiet: The well-balanced motor shaft and impeller enables the pump to run evenly with less noise.
7. Economical: By turbo flow design and two(2) poles motors, if both high head and high flow are the requirements. Showfou users could consume 1/3 less energy than other brands.

Applications:

1. Agricultural irrigations and water supply in slope area.
2. Shallow well.
3. Water-supplying system of apartment, building.
4. Spraying system of yard and garden.
5. Any kind of high head water supply.
