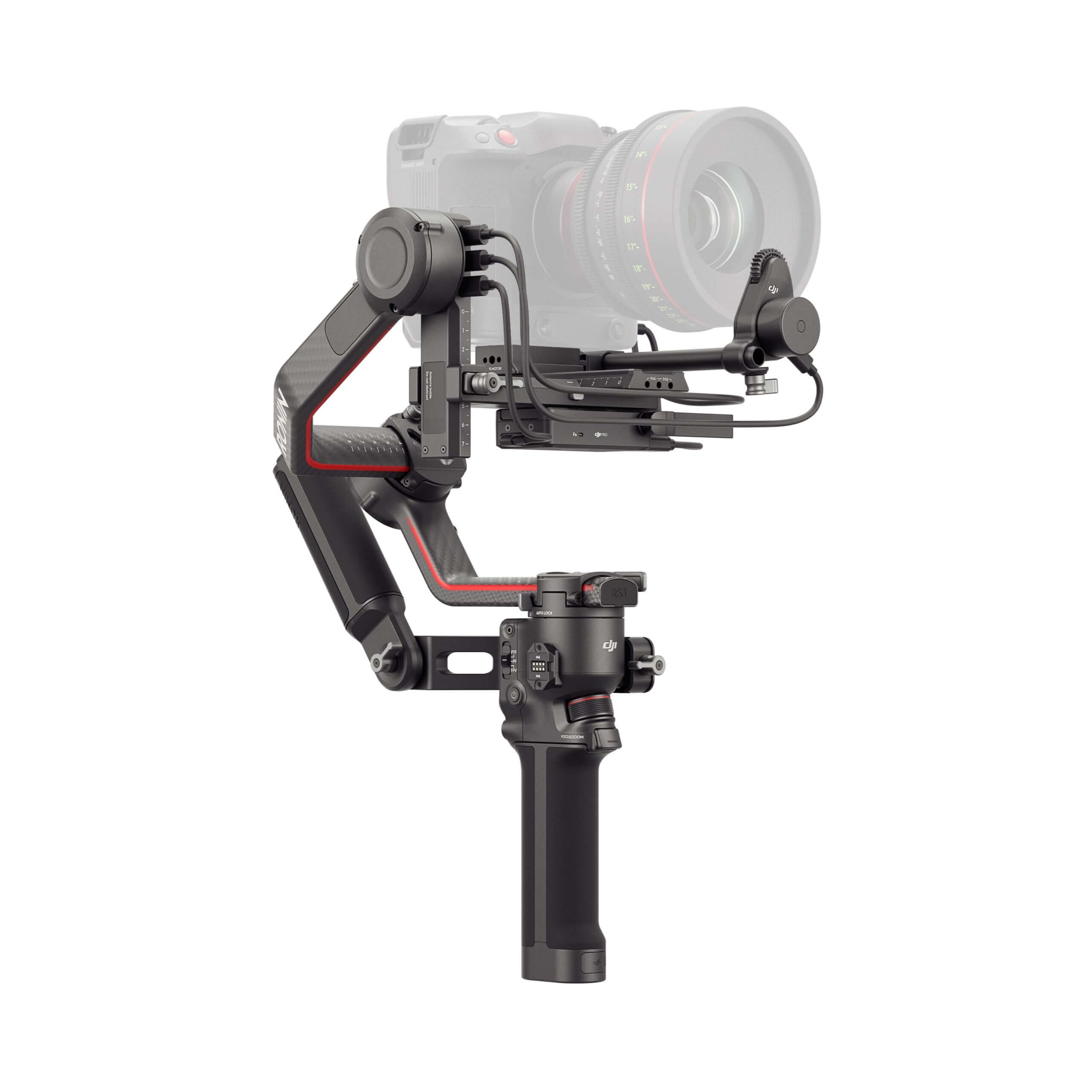

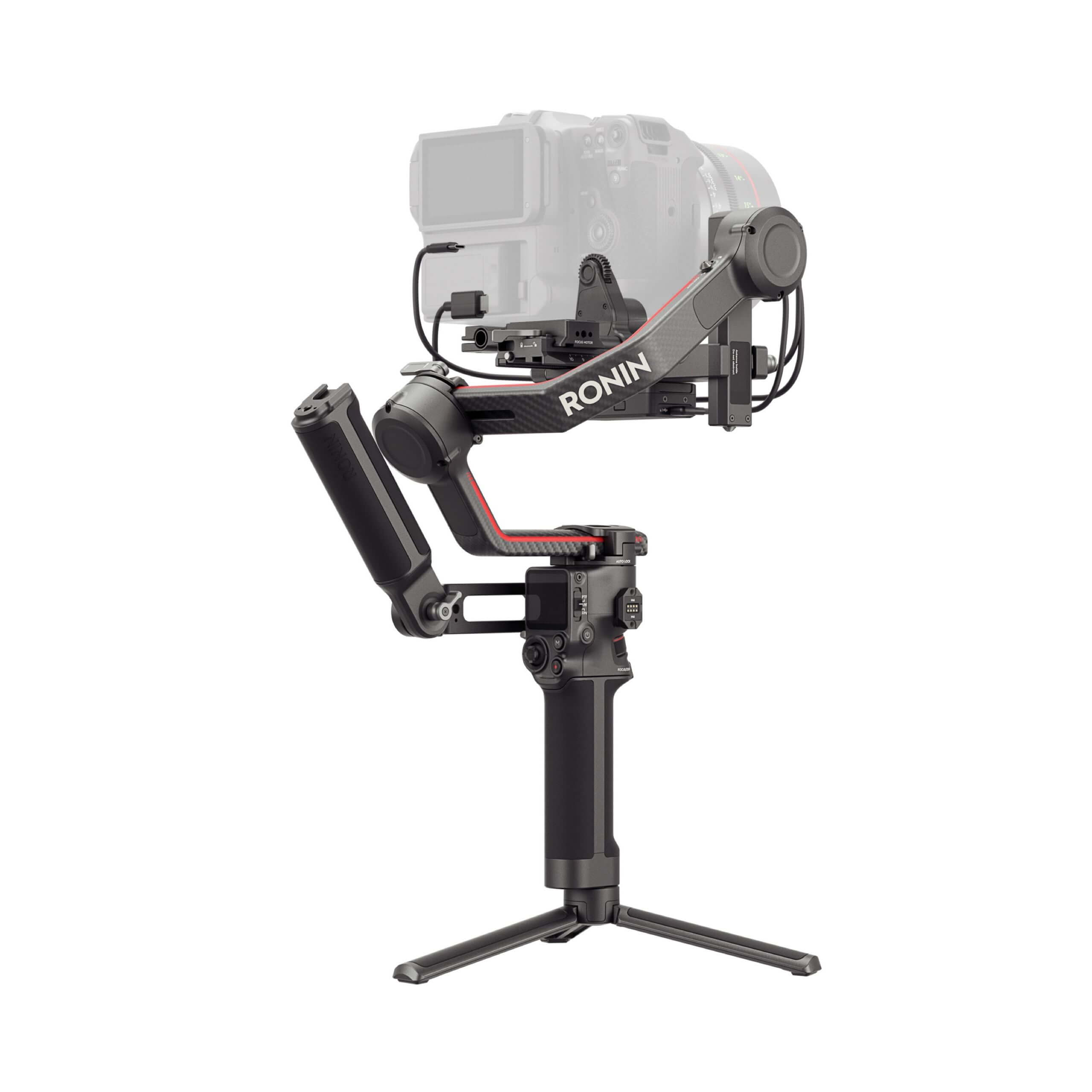

DJI Gimbal RS 3 Pro Combo

DJI Gimbal Price in Nepal

Peripheral

Accessory Port

1. RSA/NATO Ports
2. 1/4"-20 Mounting Hole
3. Cold Shoe
4. Video Transmission/LiDAR Range Finder Port (USB-C)
5. RSS Camera Control Port (USB-C)
6. Focus Motor Port (USB-C)

Battery

1. Model: BG30-1950 mAh-15.4V
2. Type: LiPo 4S
3. Capacity: 1950 mAh
4. Energy: 30 Wh
5. Max. Runtime: 12 hours^[1]
6. Charging Time: Approx. 1.5 hours (using 24W charger; it is recommended to use QC 2.0 or PD protocol chargers)
7. Suggested Charging Temperature: 5° to 40° C (41° to 104° F)

Connections

1. Bluetooth 5.0
2. Charging Port (USB-C)

Ronin App Requirements

1. iOS 11.0 or above
2. Android 7.0 or above

Languages Supported by the Touchscreen

1. English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

Tested Payload

1. 4.5 kg (10 lbs)

Maximum Controlled Rotation Speed

1. Pan: 360°/s
2. Tilt: 360°/s
3. Roll: 360°/s

Mechanical Range

1. Pan axis: 360° continuous rotation
2. Roll axis: -95° to +240°
3. Tilt axis: -112° to +214°

Mechanical & Electrical Characteristics

Operating Frequency

1. 2.400-2.484 GHz

Bluetooth Transmitter Power

1. <8 dBm

Operating Temperature

1. -20° to 45° C (-4° to 113° F)

Weight

1. Gimbal: Approx. 1,143 g (2.51 lbs)
2. Grip: Approx. 265 g (0.58 lbs)
3. Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs)
4. Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)

Gimbal Dimensions

1. Folded: 268×276×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
2. Unfolded: 415×218×195 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)

DJI Ronin Image Transmitter

Connections

1. Power/Communication Port (USB-C)
2. HDMI Port (Mini HDMI)
3. RSS Camera Control Port (USB-C)

Expansion Port

1. Cold Shoe

Operating Frequency

1. 2.400-2.484 GHz
2. 5.725-5.850 GHz

Weight

1. 126 g (0.27 lbs)

Dimensions

1. Length: 82×63×24 mm (L×W×H)

Transmitter Power (EIRP)

1. 2.400-2.484 GHz:
2. <25 dBm (FCC)
3. <20 dBm (CE/SRRC/MIC)
4.

5. 5.725-5.850 GHz:
6. <25 dBm (FCC/SRRC)
7. <14 dBm (CE)

Battery

1. Capacity: 2970 mAh
2. Compatible Charger: 5 V/2 A
3. Charging Time: Approx. 2.5 hours
4. Operating Time: Approx. 3.5 hours

Transmission Range

1. 200 m (SRRC/FCC)^[2]
2. 100 m (CE)^[2]

Latency

1. 60 ms

Operating Current/Voltage

1. 900 mA/3.7 V

Operating Temperature

1. 0° to 45° C (32° to 113° F)

DJI LiDAR Range Finder (RS)

Accessory Port

1. Cold Shoe
2. 1/4"-20 Mounting Hole
3. USB-C Port
4. USB-C Power/CVBS/CAN Data Port

Image Sensor

1. Resolution: 448×298 on the RS touchscreen
2. FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
3. Frame Rate: 30fps
4. Focal Length: 30mm Equivalent

ToF Sensor

1. Resolution: 240×180
2. Sensing Range: 0.5 to 14 m^[3]
3. FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
4. Frequency: 25 Hz
5. Focal Length: 30mm equivalent
6. Distance Error: 1%

Machine Learning

1. Frequency: 30 Hz
2. Tracking Subjects: Can recognize up to five subjects at the same time, and choose one to follow
3. Smart Object Identification: Human face, head, and body

Electrical Properties

1. Power Consumption: 6.8 W
2. Input: 7 to 16 V

Operating Temperature

1. -20° to 45° C (-4° to 113° F)

Mechanical Properties

1. Dimensions: 66×57×24 mm (L×W×H)
2. Weight: Approx. 130 g (0.28 lbs)
3. Mounting Plate Height: 30 mm

Lenses that Do Not Need Calibration

1. DZOFILM Vespid Cyber 35 mm
2. DZOFILM Vespid Cyber 50 mm
3. DZOFILM Vespid Cyber 75 mm

Notes

1. 1. Measured with the equipment in a level and stationary state, the gimbal balanced, three axes in an active state, and the battery only powering the gimbal.
2. 2. In open environments free of obstructions or interference.
3. 3. In environments with a brightness level of 80,000 lux or below.
