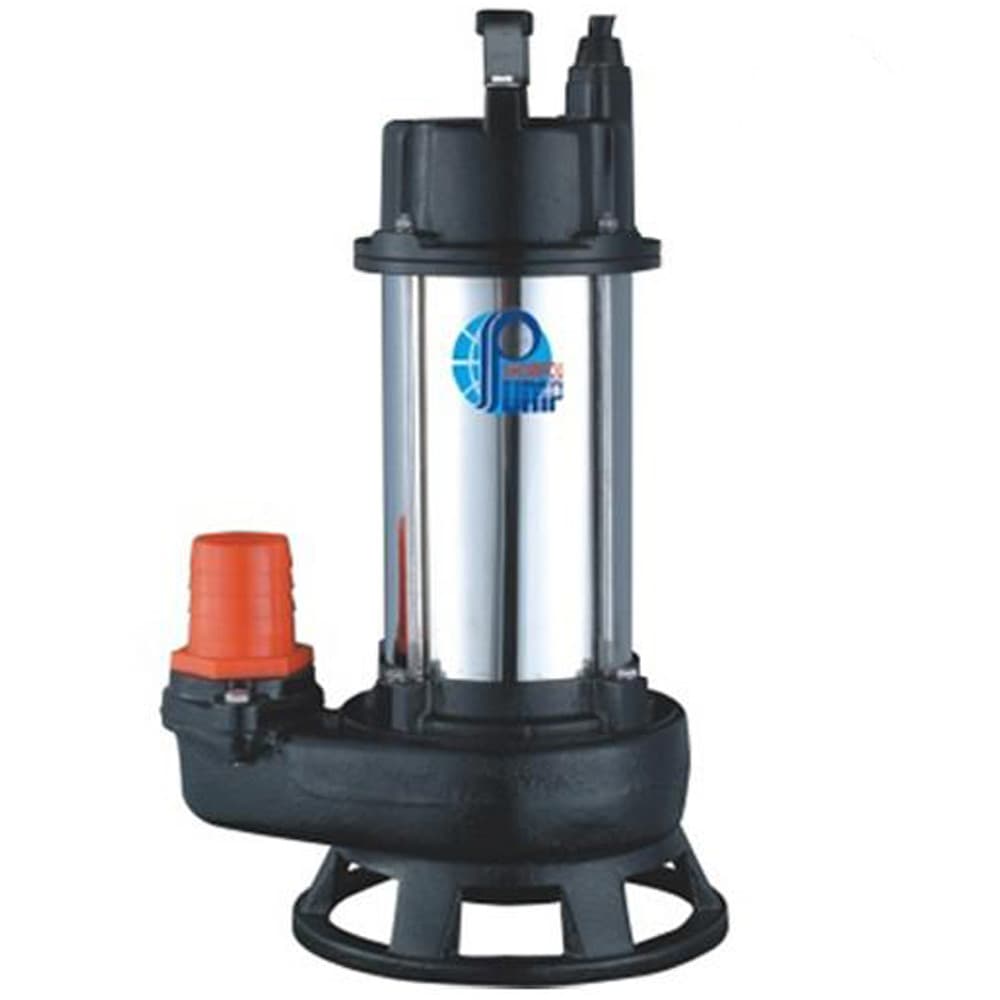

Showfu SS Type Sewage Pump 5HP

Product Specification

• Frequency: 50Hz
• Power: 5HP
• Power: 3.7kW
• Phase: 3
• Voltage: 200-480V
• Poles: 2
• Discharge Diameter: 4inch
• Discharge Diameter: 100mm
• Max Head: 26M
• Max Flow: 1.6m3/min
• Solid Passage: Ф32mm
• Weight: 49 kg
• Height: 500mm
• Pump Dia.: 410mm
• Power: 5HP
• Motor: 2 Poles
• Single Blade Semi-Open Non-clogging type Impeller.
• Advanced "Shredder Mechanism"
• Unique "Epoxy Cable Sealing Base".
• Double Mechanical Seal (Ceramic/Carbon) and separate Oil Seal

Additional Features:

1. Non-Clog Impeller: Hydrodynamically well-balanced single blade semi-open non-clogging type for sewage application.
2. Advanced Shredder Mechanism: Surface hardening heat treatment is done on impeller vanes and cutting edges, both of which are the main components of the shredder mechanism.
3. Epoxy Cable Sealing Base
4. Unique “Epoxy Cable Sealing Base” to ensure 100% capability to block the water vapor into the motor from outside.
5. Triplex Seal System: Oil-bathed Double mechanical seal(Ceramic/Carbon) plus separate oil seal ensures a longer pump life.
6. IP68 Motor: Electricity-saving Motor with a level of IP68, suitable for continuous duty.
7. Digitalized balanced motor shaft and rotor.
8. Quiet: The well-balanced motor shaft and impeller enables the pump to run evenly with less noise.
9. Compact and Light-Weight: Designed to be light, so easy to carry and handle.
10. Economical: Long-runnable with less maintenance cost.

Applications:

Ideal for sewage, industrial & groundwater drainage installation in the following fields:

1. Wastewater Treatment Plants
   Sewage pumping stations.
   • Sewage treatment plants.
   • Septic tanks.
   • Collecting and settling sumps.
2. Industrial Sites
   Mills and factories for pumping dirty water.
   • Water purification plants.
   • Flood and emergency.
3. Residential Sites
   Residential houses.
   • Flats and apartments.
4. Commercial Sites
   Restaurants and shops.
   • Markets and supermarkets.
   • Hospitals, stations, and theaters.
   • Garages and laundries.
