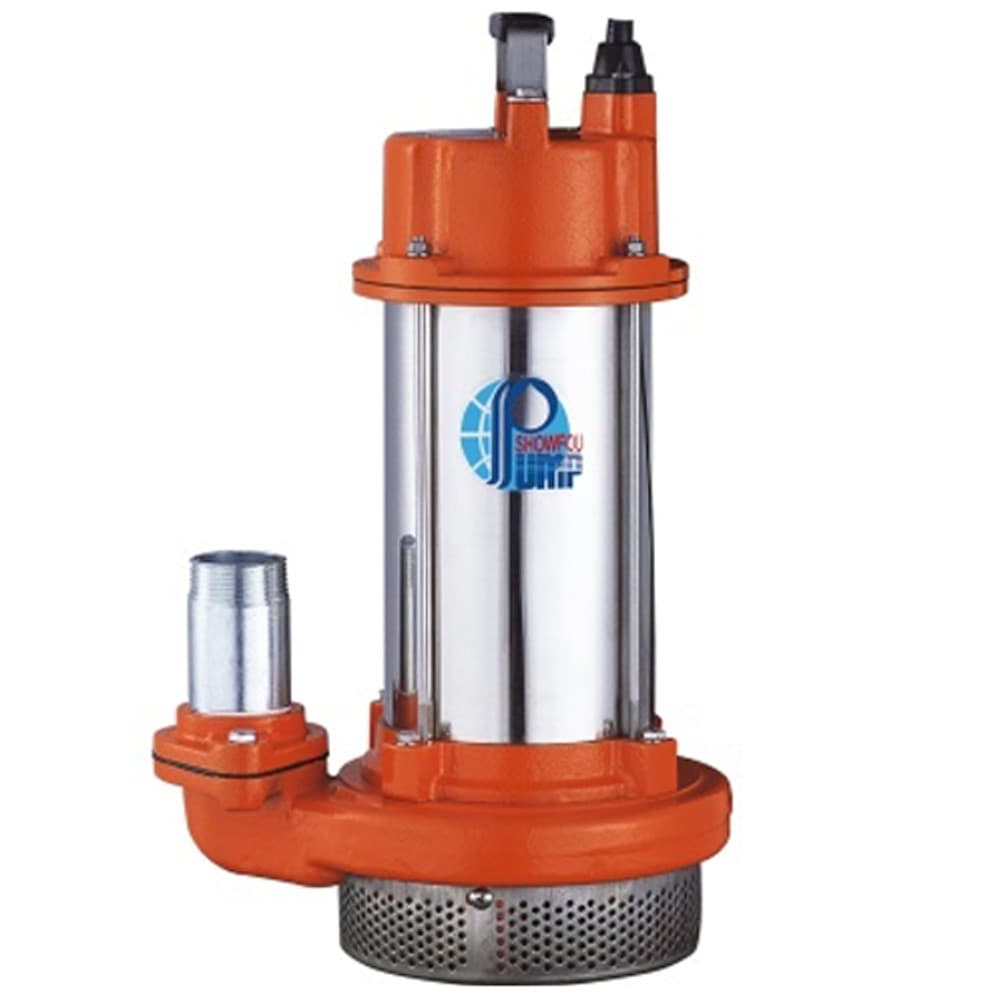

Showfu SHA Type Automatic Highhead Pump 1HP

Product Specification

• Frequency: 50Hz
• Power: 1HP
• Power: 0.75kW
• Phase: 1
• Voltage: 200-240V
• Poles: 2
• Discharge Diameter: 1.5inch
• Discharge Diameter: 40mm
• Max Head: 21M
• Max Flow: 0.24m3/min
• Solid Passage: Ф3.5mm
• Weight: 23 kg
• Height: 437mm
• Pump Dia.: 265mm
• For CLEAN WATER
• Equipped with Highhead design Closed Type Bronze Impeller
• SUPPLIED WITH FLOAT KEY SWITCH
• Power: 1 HP
• Motor: 2 Poles

Additional Features:

1. Epoxy Cable Sealing Base
2. Unique “Epoxy Cable Sealing Base” to ensure 100% capability to block the water vapor into the motor from outside.
3. Impeller: The Hydrodynamically well-balanced bronze made closed type impeller for maximum performance to assure smooth vibrationless and durable operation.
4. Triplex Seal System: Oil-bathed Double mechanical seal(Ceramic/Carbon) plus separate oil seal ensures a longer pump life.
5. Compact and Light-Weight: Designed to be light, so easy to carry and handle.
6. Quiet: The well-balanced motor shaft and impeller enables the pump to run evenly with less noise.
7. Economical: By turbo flow design and two(2) poles motors, if both high head and high flow are the requirements. Showfou users could consume 1/3 less energy than other brands.

Applications:

1. Agricultural irrigations and water supply in slope area.
2. Shallow well.
3. Water-supplying system of apartment, building.
4. Spraying system of yard and garden.
5. Any kind of high head water supply
