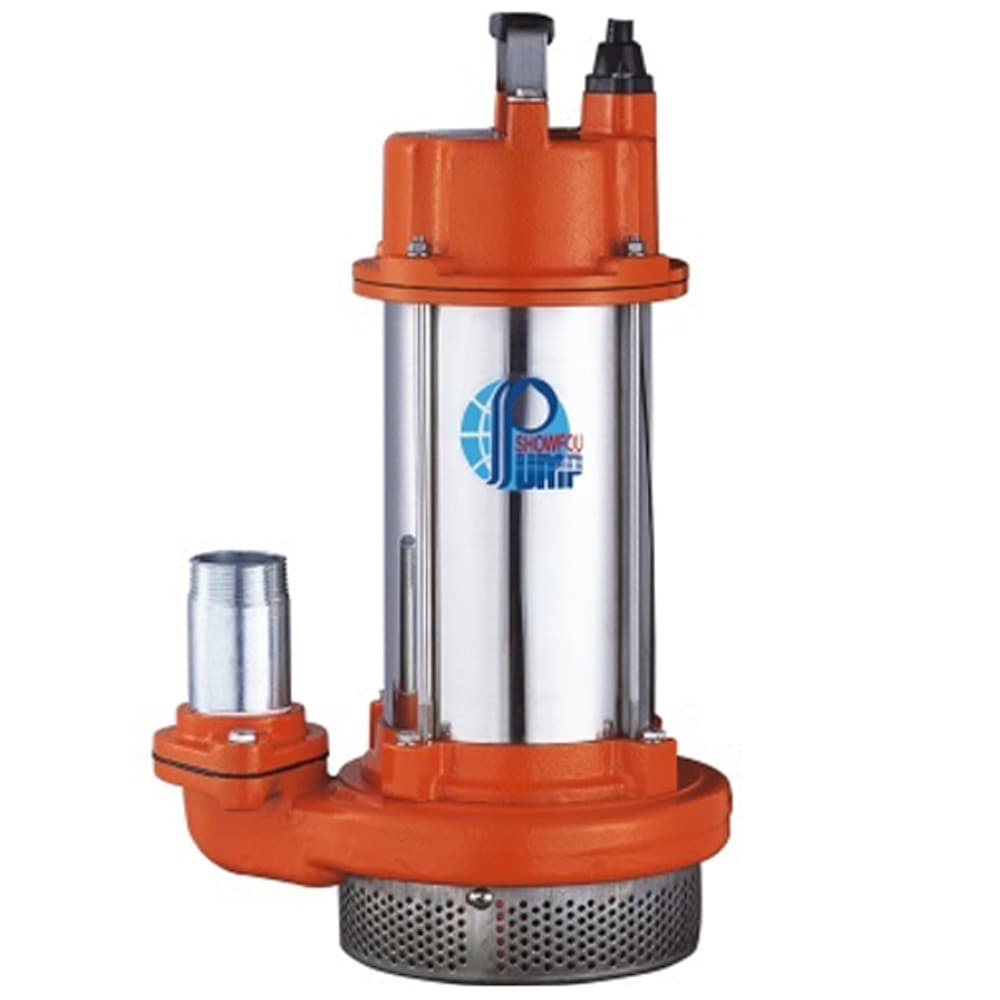

Showfu SF Type Drainage Pump 1HP

Product Specification

• Frequency: 50Hz(60Hz)
• Power: 1HP
• Power: 0.75kW
• Phase: 1
• Voltage: 200-240V
• Poles: 2
• Discharge Diameter: 2inch
• Discharge Diameter: 50mm
• Max Head: 16M
• Max Flow: 0.35m3/min
• Solid Passage: Ф6mm
• Weight: 21 kg
• Height: 460mm
• Pump Dia.: 255mm
• Power: 1HP
• Motor: 2 Poles
• Great pumping performance with a larger water capacity.
• Electricity-saving motor and easy to do the maintenance.

Additional Features:

1. Motor: Quality motor with a level of protection IP68, suitable for continuous duty.
2. Thermal Protector: Single phase model with built-in thermal protector prevents any burning damage to the motor
3. Motor Casing: Stainless steel casing greatly reduces the pump’s weight and easy to carry for the work.
4. Pump Casing: Tough cast iron casing guarantees longer servicing life.
5. Impeller: Excellent durability, semi-open type impeller design, prevents clogging by mud, sand, etc.
6. Suction Cover: Easily replaceable.
7. Strainer: Material of Engineering Plastic fo 1/3 and 1/2HP models, and Stainless Steel for 1~3HP models.
8. Triplex Seals: Equipped with a double mechanical seal with one oil seal.
9. The better pumping performance results in less electricity consumption, large water volume, convenient usage, and maintenance.

Applications:

Very good for pumps with clean non-volatile liquids without solids or fibers in below applications as:

1. Civil engineering & construction.
2. Fountains and water features.
3. Tunnel & caisson drainage.
4. Agricultural irrigation.
5. Drainage of seepage water, rain wastewater, bathing and swimming pools, industrial applications.
