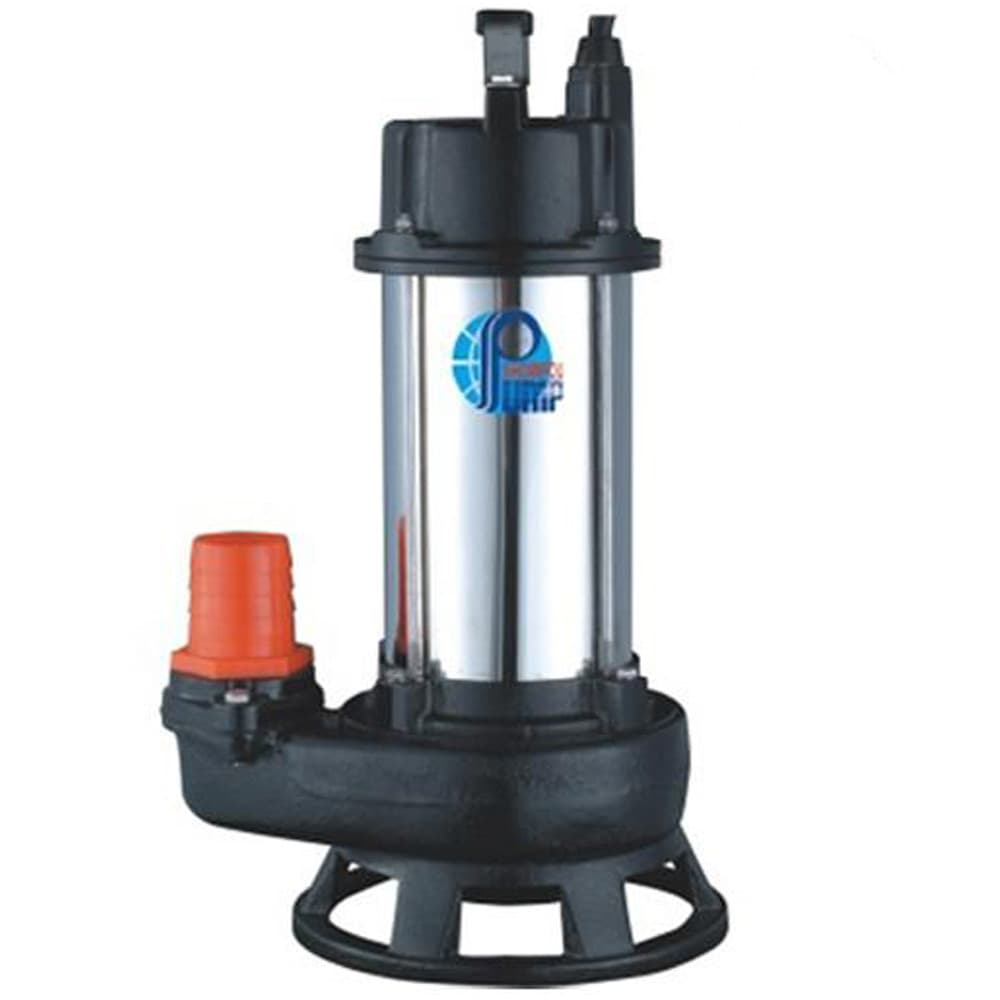

Showfu KT Type Submersible Contractor Pump KT-532

Product Specification

• Frequency: 60Hz
• Power: 3HP
• Power: 2.2kW
• Phase: 3
• Voltage: 200-480V
• Poles: 2
• Discharge diameter: 3inch
• Discharge diameter: 80mm
• Max head: 20M
• Max flow: 0.8m3/min
• Solid passage: 34*10mm
• Weight: 47 kg
• Height: 570 mm
• Pump diameter: 228 mm
• For Sand Mixed Water of Civil Construction
• Power: 3HP
• Motor: 2 Poles
• Impeller and Suction Cover are made of HiCr.
• Unique "Epoxy Cable Sealing Base".
• Double Mechanical Seal (SiC/SiC) and separate Oil Seal

Additional Features:

1. Impeller and its suction cover are made of HiCr (high chrome alloy steel) with hardness 55-60 HRc, designed to stand high abrasive applications.
2. Double silicon carbide mechanical seals in oil chamber plus oil seal.
3. Top discharge to suit construction sites.
4. The portable design, wear-resistant parts, and high-pressure capabilities ensure the reliability, sustained performance, and ease of service.
5. Excellent for dewatering and draining jobs

Application:

Dewatering applications at sites such as:

1. Construction sites
2. Excavations
3. Tunnels
4. Steelworks
5. Fish ponds
6. Underground parking drainage
7. Industrial drainage pits1
