Upgrade your next mapping mission with the Phantom 4 RTK – DJI’s most compact and accurate low-altitude mapping solution.
DJI has rethought its drone technology from the ground up, revolutionizing its systems to achieve a new standard for drone accuracy – offering Phantom 4 RTK customers centimeter-accurate data while requiring fewer ground control points.
Centimetre Level Positioning System
A new RTK module is integrated directly into the Phantom 4 RTK, providing real-time, centimeter-level positioning data for improved absolute accuracy on image metadata.
Sitting just beneath the RTK receiver is a redundant GNSS module, installed to maintain flight stability in signal-poor regions such as dense cities.
Combining both modules, the Phantom 4 RTK is able to optimize flight safety while ensuring the most precise data is captured for complex surveying, mapping, and inspection workflows.
Fit the Phantom 4 RTK to any workflow, with the ability to connect this positioning system to the DRTK 2 Mobile Station, NTRIP (Network Transport of RTCM via Internet Protocol) using a 4G dongle or WiFi hotspot, or store the satellite observation data to be used for Post Processed Kinematics (PPK).
Precise Imaging System
Capture the best image data with a 1-inch, 20-megapixel CMOS sensor.
The mechanical shutter makes mapping missions or regular data capture seamless as the Phantom 4 RTK can move while taking pictures without the risk of rolling shutter blur.
Due to the high resolution, the Phantom 4 RTK can achieve a Ground Sample Distance (GSD) of 2.74 cm at 100 meters flight altitude.
To ensure each Phantom 4 RTK offers unparalleled accuracy, every single camera lens goes through a rigorous calibration process where radial and tangential lens distortions are measured.
The distortion parameters gathered are saved into each image’s metadata, letting post-processing software adjust uniquely for every user.
Built for Surveyors
Offering a range of control schemes and complementary technologies, the DJI Phantom 4 RTK is developed to provide survey-grade results with greater efficiency than ever before Access a Variety of 3rd Party Applications Pilots with experience using 3rd party apps on DJI drones can access the world’s leading drone app ecosystem for their Phantom 4 RTK with the SDK Remote Controller. Users can plug in a compatible Android or iOS device and install any compatible DJI Mobile SDK-enabled app to harness the full power of their Phantom 4 RTK.

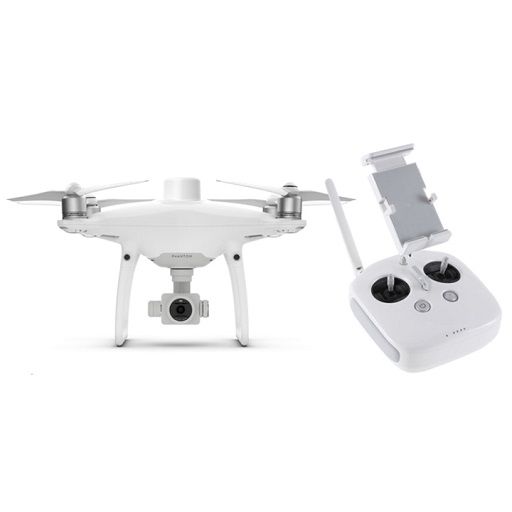

What’s in the box?
1 x Phantom 4 RTK – SDK
1 x SDK Remote Controller
4 x Propeller Pair
2 x Intelligent Flight Battery
1 x AC Power Adapter
1 x AC Power Cable
1 x Intelligent Flight Battery Charging Hub
1 x Gimbal Clamp
1 x 16GB MicroSD Card
1 x Micro USB Cable
1 x Carrying Case
Ready To Fly-YES
Ready To Fly-YES
Built In Camera-YES
Photo Quality-20 Megapixel
Battery life-Up to 30 Minutes
Auto Take Off & Landing-YES
Position & Altitude Hole-YES
Follow Me Mode-YES
Return To Home-YES
Control System-Remote & Phone/Tablet
Number Of Rotors-4
* Please note third party phone or tablet (Not Provided) is required to fly a drone via RC. Call to check compatibility with third-party devices.
