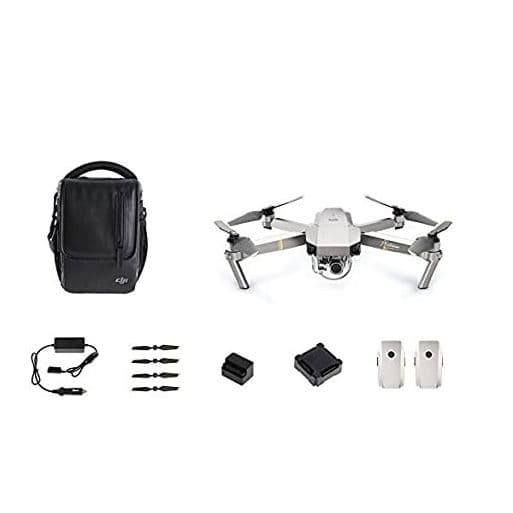

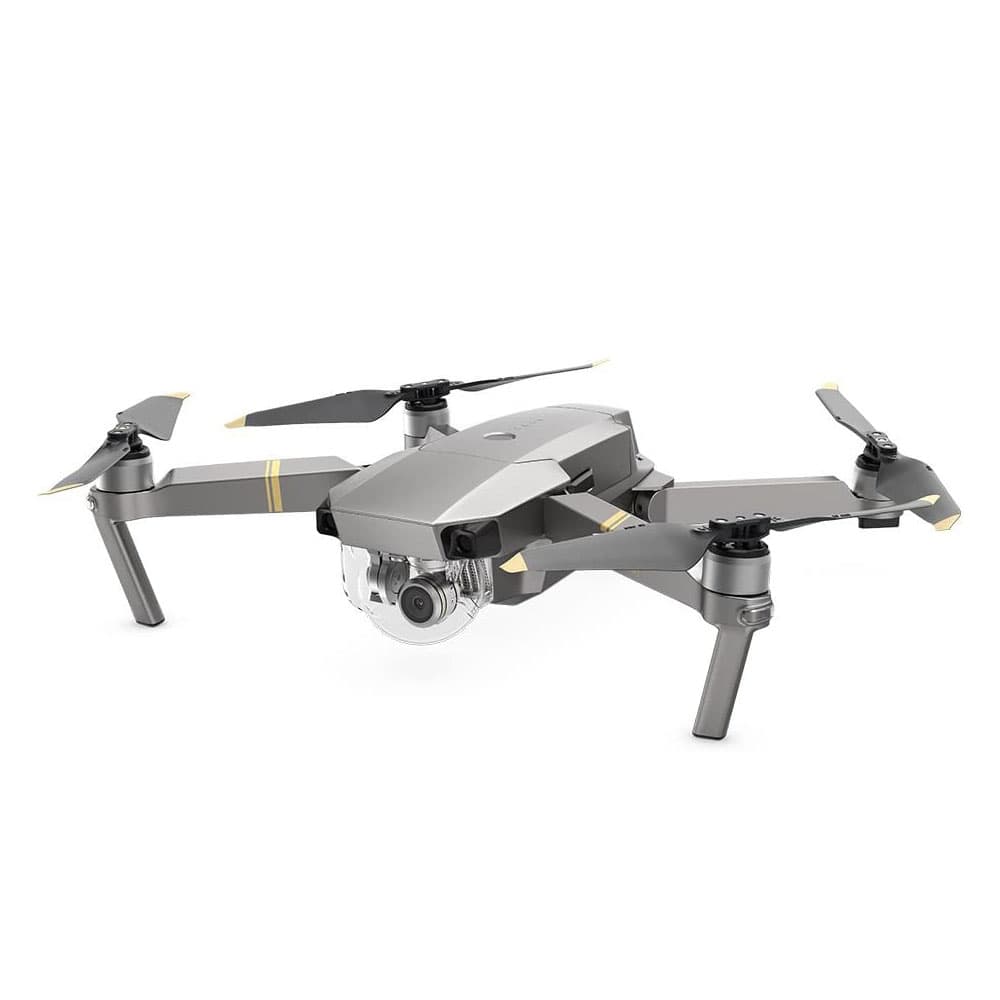

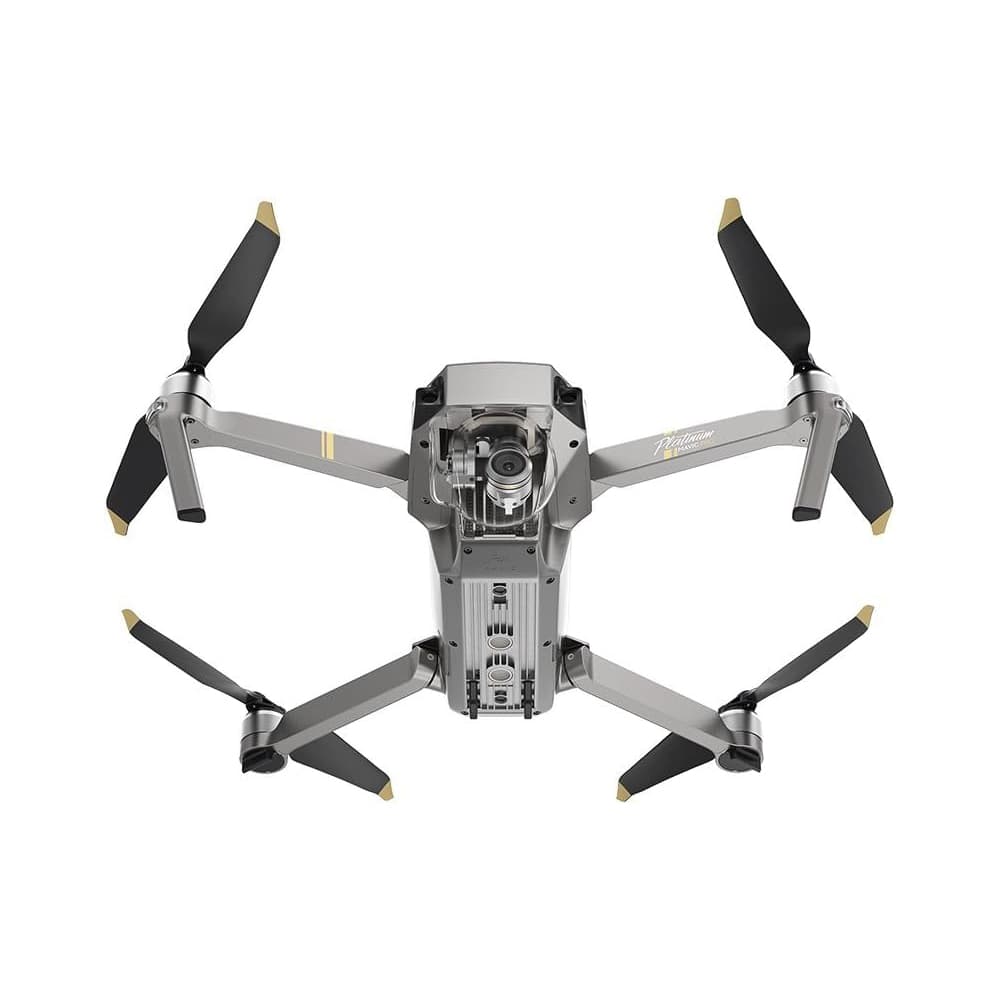

DJI Mavic Pro Platinum Fly More Combo

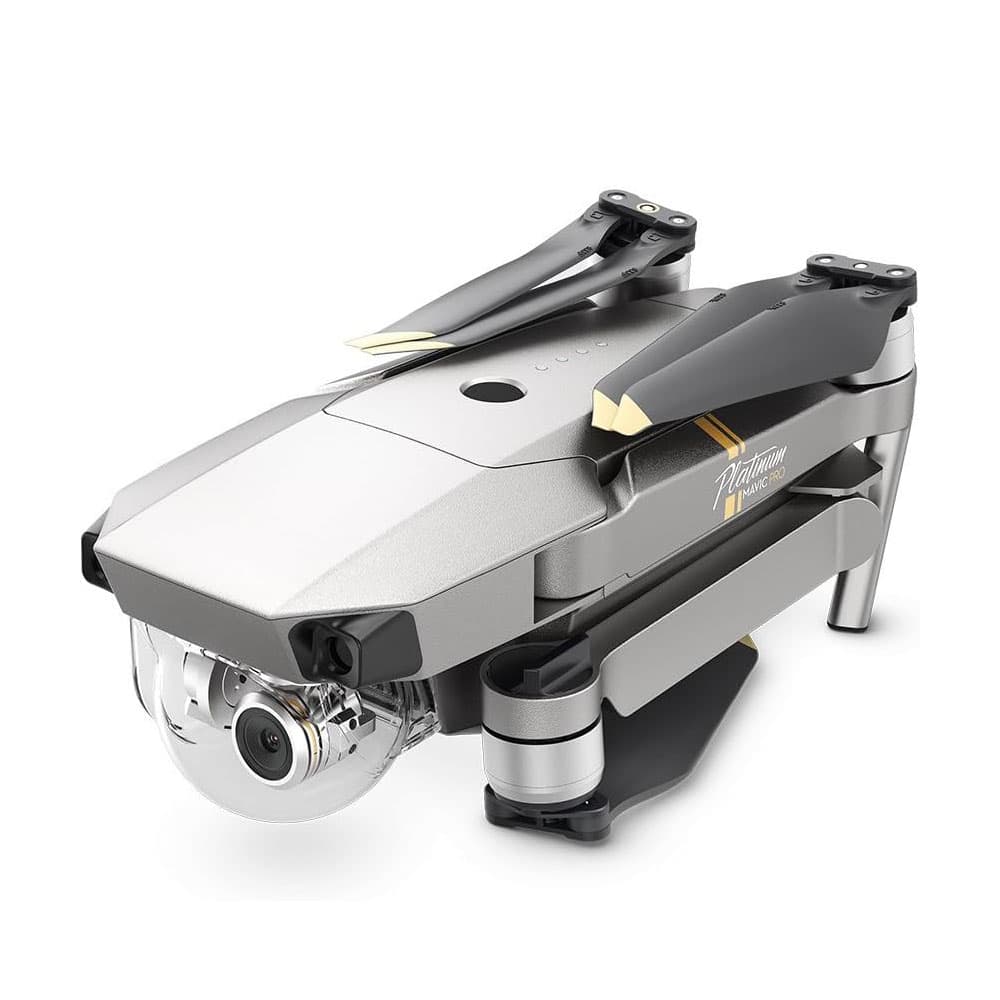

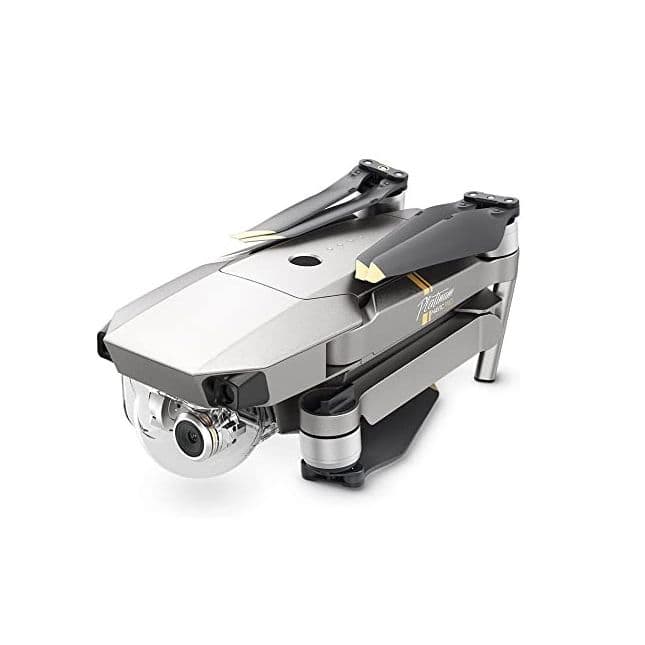

Folded

H83mm x W83mm x L198mm

Diagonal Size (Propellers Excluded)

335 mm

Weight (Battery & Propellers Included)

1.62 lbs (734 g) (exclude gimbal cover)

1.64 lbs (743 g) (include gimbal cover)

Max Ascent Speed

16.4 ft/s (5 m/s) in Sport mode

Max Descent Speed

9.8 ft/s (3 m/s)

Max Speed

40 mph (65 kph) in Sport mode without wind

Maximum Takeoff Altitude

16404 feet (5000 m)

Max Flight Time

30 minutes (no wind at a consistent 15.5 mph (25 kph))

Max Hovering Time

27 minutes (no wind)

ESC(Electronic Speed Controller)

FOC

Max Total Travel Distance (One Full Battery, No Wind)

9.3 mi (15 km, no wind)

Operating Temperature Range

32° to 104° F (0° to 40° C)

Satellite Positioning Systems

GPS / GLONASS

Hover Accuracy Range

Vertical:

+/- 0.1 m (when Vision Positioning is active) or +/-0.5 m

Horizontal:

+/- 0.3 m (when Vision Positioning is active) or +/-1.5 m

Operating Frequency

FCC:

2.4-2.4835GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

CE:

2.4-2.4835GHz; 5.725-5.850 GHz

SRRC：

2.4-2.4835 GHz;5.725-5.850 GHz

Transmitter Power (EIRP)

2.4GHz

FCC:<=26 dBm; CE: <=20 dBm; SRRC:<=20 dBm; MIC:<=18 dBm

5.2 GHz

FCC:<=23 dBm

5.8 GHz

FCC:<=23 dBm; CE <=13 dBm; SRRC: <=23 dBm; MIC: -

Operating Frequency

2.4 GHz to 2.483 GHz

Max Transmission Distance

FCC Compliant: 4.3 mi (7 km);

CE Compliant: 2.5 mi (4 km)

SRRC Compliant: 2.5mi (4 km)

MIC Compliant: 2.5 mi (4 km) (Unobstructed, free of interference)

Operating Temperature Range

32° to 104° F ( 0° to 40° C )

Battery

2970mAh

Transmitter Power (EIRP)

FCC：<=26 dBm

CE：<=20 dBm

SRRC: <=20 dBm

MIC: <=18 dBm

Operating Current/Voltage

950mA @ 3.7V

Supported Mobile Device Size

Thickness Supported:6.5-8.5mm

Max length: 160mm

Supported USB port types: Lightning, Micro USB(Type-B),USB(Type-C)™

Controllable Range

Pitch: -90° to +30°

Roll: 0° or 90° (Horizontally and vertically)

Stabilization

3-axis (pitch, roll, yaw)

Vision System

Vision System

Forward Vision System

Downward Vision System

Obstacle Sensory Range

Precision measurement range: 2 ft (0.7 m) to 49 ft (15 m) Detectable range: 49 ft (15 m) to 98 ft (30 m)

Operating Environment

Surface with clear pattern and adequate lighting (lux > 15)

Velocity Range

≤22.4 mph (36 kph) at 6.6 ft (2 m) above ground

Altitude Range

1 - 43 feet (0.3 - 13 m)

Operating Range

1 - 43 feet (0.3 - 13 m)

Mobile App

DJI GO 4

Live View Quality

720p@30fps, 1080p@30fps（Remote Controller）

720p@30fps(Wi-Fi)

720p@60fps, 1080p@30fps（DJI Goggles）

Latency

160-170ms (depending on conditions and mobile device)
