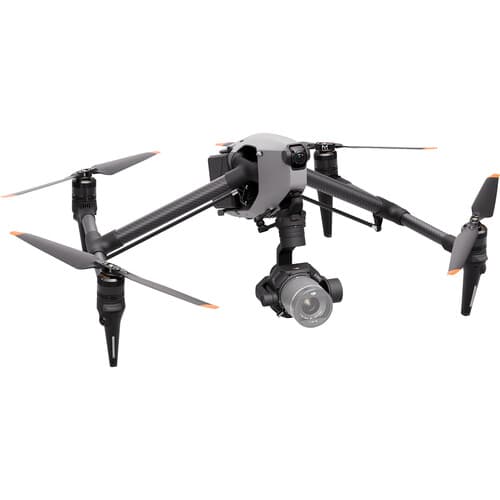

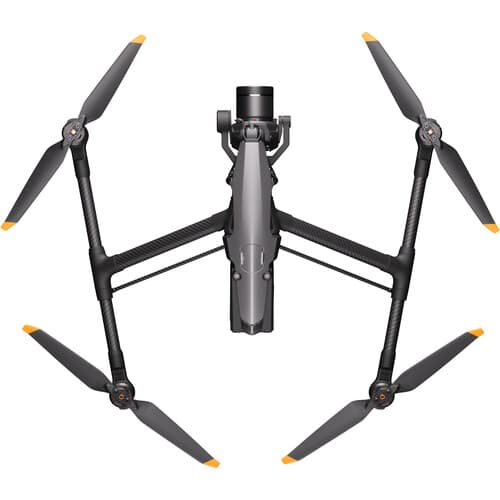

DJI Inspire 3

Model

T740

Aircraft Weight

Approx. 3,995 g (includes gimbal camera, two batteries, lens, PROSSD, and propellers)

Max Takeoff Weight

Approx. 4,310 g

Hovering Accuracy Range

Vertical:

±0.1 m (with vision positioning)

±0.5 m (with GNSS positioning)

±0.1 m (with RTK positioning)

Horizontal:

±0.3 m (with vision positioning)

±0.5 m (with GNSS positioning)

±0.1 m (with RTK positioning)

RTK Positioning Accuracy (RTK fix)

1 cm + 1 PPM (horizontal)

1.5 cm + 1 PPM (vertical)

Max Angular Velocity

Pitch: 200°/s

Roll: 200°/s

Yaw: 150°/s

Max Tilt Angle

N Mode: 35°

S Mode: 40°

A Mode: 35°

T Mode: 20°

Emergency Brake: 55°

Max Ascent Speed

8 m/s

Measured when flying in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only.

Max Descent Speed

Vertical: 8 m/s

Tilt: 10 m/s

Measured when flying in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only.

Max Horizontal Speed

94 kph

Measured when flying in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only.

Max Service Ceiling Above Sea Level

Standard Propellers: 3800 m

High-Altitude Propellers: 7000 m

Measured in an environment with light wind with the gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only.

Max Wind Resistance

Takeoff/land: 12 m/s

In-flight: 14 m/s

Measured when flying at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only.

Max Hovering Time

Approx. 25 minutes

Measured when hovering in a windless environment at sea level with gimbal camera and lens attached to the aircraft and without other accessories, with landing gear raised, and recording 4K/24fps H.264 (S35) video until the battery reached 0%. This data is for reference only. Please refer to the actual values in the app.

Max Flight Time

Approx. 28 minutes (landing gear lowered)

Approx. 26 minutes (landing gear raised)

Measured when flying forward at a constant speed of 36 kph in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories, and recording 4K/24fps H.264 (S35) video until the battery reached 0%. This data is for reference only. Please refer to the actual values in the app.

Motor Model

DJI 3511s

Global Navigation Satellite System

GPS + Galileo + BeiDou

Propeller Model

Standard Propellers: DJI 1671

High-Altitude Propellers: DJI 1676

Operating Temperature

-20° to 40° C (-4° to 104° F)

Diagonal Distance

Landing Gear Raised: 695 mm

Landing Gear Lowered: 685 mm

Travel Mode Dimensions

Height: 176 mm

Width: 709.8 mm

Length: 500.5 mm

Gimbal Camera

Sensor

35mm full-frame CMOS

Max Resolution

Photo: 8192×5456

Video: 8192×4320

Video Resolution

View detailed list

Supported Lenses

DL 18 mm F2.8 ASPH Lens

DL 24 mm F2.8 LS ASPH Lens

DL 35 mm F2.8 LS ASPH Lens

DL 50 mm F2.8 LS ASPH Lens

Photo Format

JPG, DNG

Video Format

MOV, CinemaDNG

Operation Mode

Capture, Record, Playback

Exposure Mode

P, A, S, M

Shutter Type

Electronic shutter

Shutter Speed

8-1/8000 s

White Balance

AWB

MWB (2000K-10000K)

ISO Range


ISO: 100-25600

Video

EI: 200-6400

Anti-flicker

Capture Mode: Auto, 50 Hz, 60 Hz, OFF

Angular Vibration Range

Hovering: ±0.002°

Flying: ±0.004°

Installation Method

Quick release

Mechanical Range

Tilt:

-128° to +110° (landing gear lowered)

-148° to +90° (landing gear raised)

Roll: -90° to +230°

Pan: ±330°

Controllable Range

Tilt (landing gear lowered):

Before gimbal tilt limit extension: -90° to +30°

After gimbal tilt limit extension: -115° to +100°

Tilt (landing gear raised):

Before gimbal tilt limit extension: -90° to +30°

After gimbal tilt limit extension: -140° to +75°

Roll: ±20°

Pan: ±300°

Max Control Speed

With DJI RC Plus:

Tilt: 120°/s

Roll: 180°/s

Pan: 270°/s

With DJI Master Wheels:

Tilt: 432°/s

Roll: 432°/s

Pan: 432°/s

Weight

Approx. 516 g (without lens)

Video Transmission

Video Transmission System

O3 Pro

Live View Quality

FPV Camera: Up to 1080p/60fps

Gimbal Camera: Up to 1080p/60fps, 4K/30fps

Max Live Video Bitrate

50 Mbps

Max Transmission Distance

Single Control Mode:

FPV Camera: approx. 15 km (FCC), 8 km (CE/SRRC/MIC)

Gimbal Camera (1080p/60fps live feeds): approx. 13 km (FCC), 7 km (CE/SRRC/MIC)

Gimbal Camera (4K/30fps live feeds): approx. 5 km (FCC), 3 km (CE/SRRC/MIC)

Dual-Control Mode:

FPV Camera: approx. 12 km (FCC), 6.4 km (CE/SRRC/MIC)

Gimbal Camera (1080p/60fps live feeds): approx. 11.2 km (FCC), 5.6 km (CE/SRRC/MIC)

Gimbal Camera (4K/30fps live feeds): approx. 4 km (FCC), 2.4 km (CE/SRRC/MIC)

Measured in an unobstructed outdoor environment free of interference, with gimbal camera and lens attached to the aircraft and without other accessories. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to reminders in the app.

Lowest Latency

FPV Camera: 90 ms

Gimbal Camera: 90 ms

The lowest latency of the gimbal camera was measured when recording 4K/60fps ProRes RAW video. The lowest latency of the FPV camera was measured with strong video transmission signals.

Operating Frequency

2.4000-2.4835 GHz

5.150-5.250 GHz (CE: 5.170-5.250 GHz)

5.725-5.850 GHz

In some countries and regions, the 5.1 and 5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations.

Transmitter Power (EIRP)

2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)

5.1 GHz: <23 dBm (CE)

5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)

Battery

Model

TB51 Intelligent Battery

Capacity

4280 mAh

Nominal Voltage

23.1 V

Type

Li-ion

Chemical System

LiCoO2

Energy

98.8 Wh

Weight

Approx. 470 g

Operating Temperature

-20° to 40° C (-4° to 104° F)

Charging Temperature

-20° to 40° C (-4° to 104° F)

If the temperature of the battery is lower than 10° C (50° F), the battery will trigger an auto-heating function. Charging in a low-temperature environment below 0° C (32° F) may shorten battery life.

Max Charging Power

205.5 W

Charge via Aircraft

Not supported

Battery Charging Hub

Input

100-240 V AC, max 8 A

Output

26.4 V, 7.8 A

Total Rated Output

476 W, including 65W PD fast charging of USB-C port

Charging Time

Fast Mode: Approx. 35 minutes to 90%

Standard Mode: Approx. 55 minutes to 100%

Silent Mode: Approx. 80 minutes to 100%

Tested at a room temperature of 25° C (77° F) and in a well-ventilated environment. In Fast mode, each battery pair is charged to 90% in sequence, and then eight batteries are charged together to 100%.

Charging Temperature

-20° to 40° C (-4° to 104° F)

Weight

Approx. 1,680 g

Memory Card

Memory Card Type

DJI PROSSD 1TB

Sensing

Forward

Measurement Range: 1.5-48 m

Effective Sensing Speed: ≤15 m/s

FOV:

Horizontal 90°, Vertical 103° (landing gear raised)

Horizontal 72°, Vertical 103° (landing gear lowered)

Backward

Measurement Range: 1.5-48 m

Effective Sensing Speed: ≤15 m/s

FOV: Horizontal 90°, Vertical 103°

Lateral

Measurement Range: 1.5-42 m

Effective Sensing Speed: ≤15 m/s

FOV: Horizontal 90°, Vertical 85°

Upward

Measurement Range: 0.2-13 m

Effective Sensing Speed: ≤6 m/s

FOV: Front and Back 100°, Left and Right 90°

Downward

Measurement Range: 0.3-18 m

Effective Sensing Speed: ≤6 m/s

FOV: Front and Back 130°, Left and Right 160°

Operating Environment

Forward, Backward, Left, Right, and Upward: surfaces with discernible patterns and adequate lighting (lux >15)

Downward: surfaces with discernible patterns and diffuse reflectivity >20% (e.g., walls, trees, people); adequate lighting (lux >15)

Obstacle sensing is disabled while the landing gear is in the process of being raised or lowered.

ToF Infrared Sensor Measurement Range

0-10 m

Remote Controller

Model

RM700B

Operating Time

Built-in Batteries: approx. 3.3 hours

Built-in Batteries Plus External Battery: approx. 6 hours

Operating Frequency

2.4000-2.4835 GHz

5.725 GHz-5.850 GHz

In some countries and regions, 5.1GHz and 5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations.

Video Output Port

HDMI

Power Supply

Built-in batteries or external battery

Coordinated Operation

Supports dual controls and coordination between multiple operators

Power Consumption

12.5 W

Operating Temperature

-20° to 50 °C (-4° to 122° F)

Storage Temperature

-30° to 45° C (-22° to 113° F) (within one month)

-30° to 35° C (-22° to 95° F) (one to three months)

-30° to 30° C (-22° to 86° F) (three months to one year)

Battery

Built-in Battery: 3250mAh-7.2V (a set)

External Battery: WB37 Intelligent Battery

Wi-Fi Protocol

Wi-Fi 6

Wi-Fi Operating Frequency

2.4000-2.4835 GHz

5.150-5.250 GHz

5.725-5.850 GHz

Wi-Fi Transmitter Power (EIRP)

2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)

5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)

5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)

Bluetooth Protocol

Bluetooth 5.1

Bluetooth Operating Frequency

2.4000-2.4835 GHz

Bluetooth Transmitter Power (EIRP)

< 10 dBm

App

App

DJI Pilot 2

FPV Camera

FOV

161°

Resolution

1920×1080@60fps
