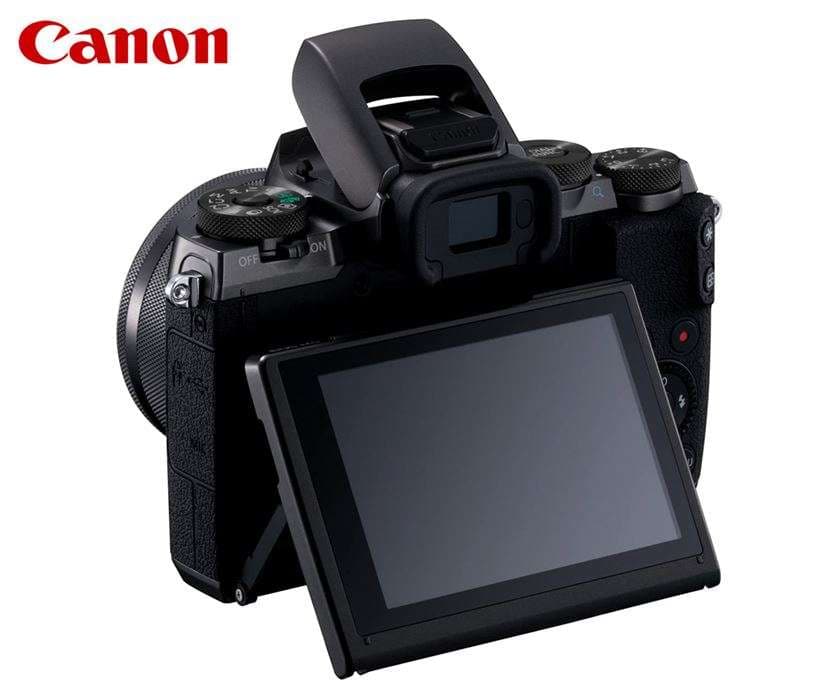

Canon EOS M5 Mirrorless DSLR Camera With 15-45mm Lens

Canon EOS M5 Mirrorless DSLR Camera With 15-45mm Lens

Brand: Canon

Model: EOS M5



IMAGE SENSOR:

Type: 22.3 x 14.9mm CMOS

Effective Pixels: Approx. 24.2 megapixels

Total Pixels: Approx. 25.8 megapixels

Aspect Ratio: 3:2

Low-Pass Filter: Built-in/Fixed

Sensor Cleaning: EOS integrated cleaning system

Colour Filter Type: Primary Colour

Image Processor: DIGIC 7



LENS:

Lens Mount: EF-M (EF and EF-S lenses compatible via Mount adapter EF-EOS M)

Lens type: Zoom lens

Max Format size: APS-C / DX

Focal length: 15–45 mm

Image stabilization: Yes (3.5 stops)

Maximum aperture: F3.5–6.3

Minimum aperture: F22–40

Number of diaphragm blades: 7

Weight: 130 g (0.29 lb)

Diameter: 61 mm (2.4″)

Length: 45 mm (1.77″)



FOCUSING:

Type: Dual Pixel CMOS AF System. Phase detection pixels built onto imaging sensor | AF System/ Points: Maximum 49 AF points (Fixed location on 7x7 grid) via camera automatic selection | Freely position 1 AF point/ 1 AF Zone (9 points, 3x3 grid) via manual selection

AF working range: EV -1 - 18 (at 23 °C, ISO 100, with EF-M 22mm f/2 STM)

AF Modes: One-Shot AF and Servo AF

Selected AF point display: Indicated on LCD monitor/ EVF



EXPOSURE CONTROL:

Metering Range: EV 1-20 (at 23 °C, ISO 100)

Exposure Compensation: +/-3 EV in 1/3 stop increments

AEB: 3 shots, +/- 2 EV, 1/3-stop increments (can be used together with manual Exposure Compensation)

ISO Sensitivity: ISO AUTO (100 - 25600), 100 - 25600 in 1/3 stop increments4

Movie: ISO AUTO (100-6400), 100-6400 in 1/3-stop increments



SHUTTER:

Type: Electronically controlled focal-place shutter

Speed: 30-1/4000 sec (1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)



WHITE BALANCE:

Type: Auto white balance with the imaging sensor

Settings: AWB, Daylight, Shade, Cloudy, Tungsten light, White

Fluorescent light, Flash, Custom, Colour Temperature (100 Kelvin increments)



VIEWFINDER:

Type: 0.39-type OLED Electronic Viewfinder, Approx. 2,360,000 dots

Coverage (Vertical/Horizontal): Approx. 100%

Eyepoint: Approx. 22 mm

Dioptre Correction: Yes

Depth of field preview

Yes, via customisable buttons



LCD MONITOR:

Type: 8.0 cm (3.2”) ClearView II Touchscreen LCD (TFT). 3:2 aspect ratio. Approx. 1,620,000 dots. Electrostatic capacitive type. Tiltable 85 degrees up and 180 degrees down.

Coverage: Approx. 100%

Brightness Adjustment: Adjustable to one of five levels



FLASH:

Built-in Flash GN (ISO 100, meters): 5

Built-in Flash Coverage: Maximum coverage at approx. 15mm (35mm equivalent: approx. 24mm)

Built-in Flash recycle time: Approx. 3 seconds5

Modes: Auto (E-TTL II), Manual Flash On/Off (3 flash power output settings)

Red-Eye Reduction: Yes - with red eye reduction lamp

X-sync: 1/200 sec

HotShoe/ PC terminal: Yes/ No

External Flash Compatibility: E-TTL II with EX series Speedlites, wireless multi-flash support



SHOOTING:

Continuous Shooting: Fixed AF: Approx. 9 shots/s for up to 26 frames in JPEG6

With AF: Approx. 7 shots/s7



FILE TYPE:

Still Image Type: JPEG: Fine, Normal (Exif 2.30 compliant) / Design rule for Camera File system (2.0) | RAW: RAW (14-bit, Canon original RAW 2nd edition),

Digital Print Order Format [DPOF] Version 1.1 compliant

RAW+JPEG simultaneous recording: Yes, RAW + various JPEG compression possible

Movie Type: MP4 [Video: MPEG-4 AVC/H.264, Audio: MPEG-4 AAC-LC (stereo)]



OTHER FEATURES:

Intelligent Orientation Sensor: Yes, with Image Rotate

Playback zoom: 2x - 10x enabled in 10 steps

Histogram: Brightness/ RGB

Highlight Alert: Yes



INTERFACE:

Computer: Hi-Speed USB (Micro USB connector)

Other: Wireless LAN (IEEE802.11b/g/n), (2.4 GHz only, 1-11 ch), with Dynamic NFC support8

Bluetooth® (Specification version 4.1, Bluetooth low energy technology)9

HDMI (Micro - Type-D connector)

External microphone (3.5mm stereo jack)

Storage: SD, SDHC, SDXC (UHS-I compatible)



POWER SOURCE:

Batteries: 1 x Rechargeable Li-ion Battery LP-E17

Battery life: With LCD monitor: Approx. 295 shots (at 23 °C, AE 50%, FE 50%)

With EVF: Approx. 295 shots (at 23 °C, AE 50%, FE 50%)

ECO Mode: Approx. 420 shots (at 23 °C, AE 50%, FE 50%)

Battery Indicator: 4 levels
